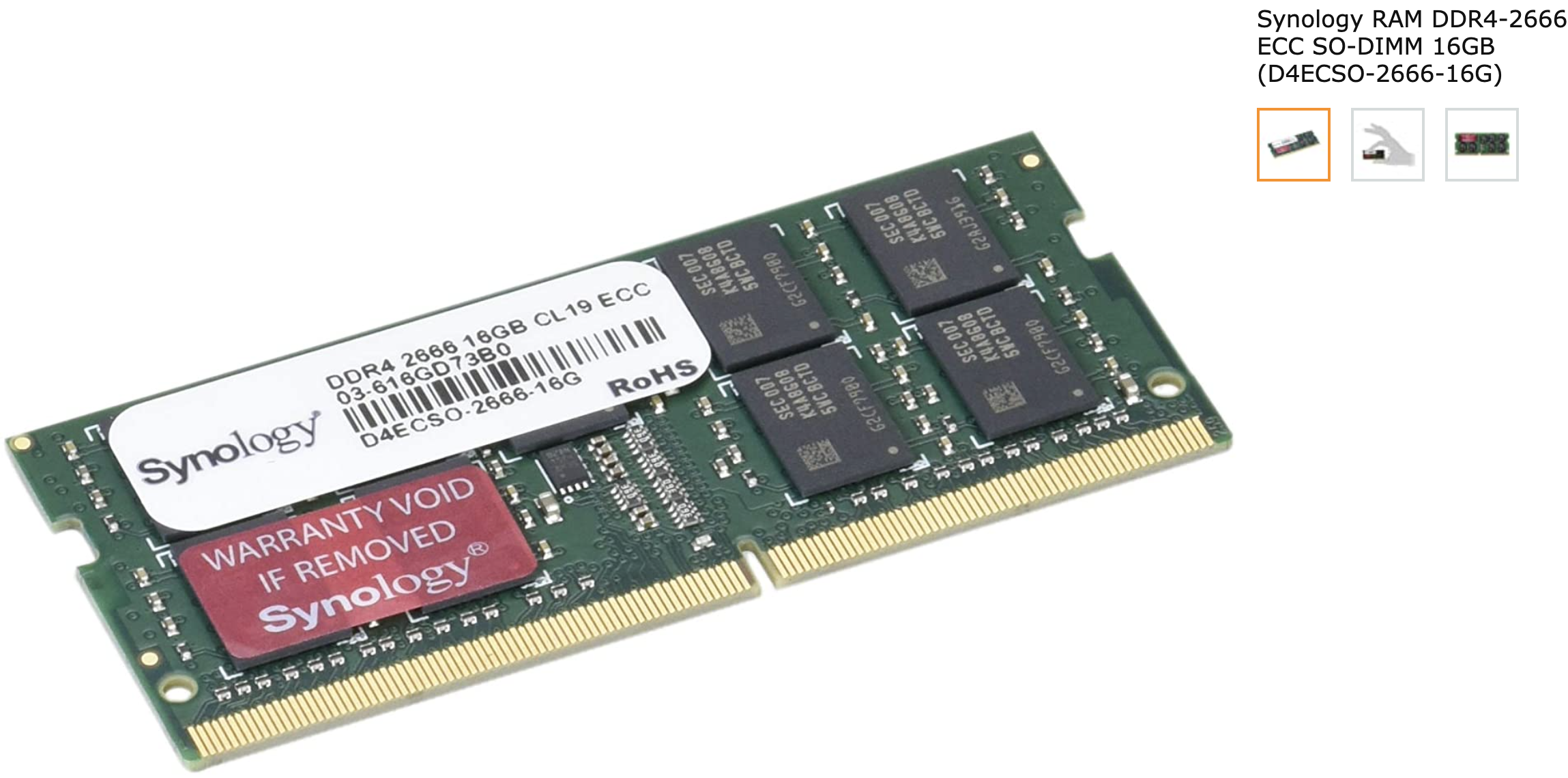

시놀로지 ECC 정품 램 규격 : D4ECSO-2666-16G
| Memory Speed | 2666 MHz |
| Voltage | 1.2 Volts |

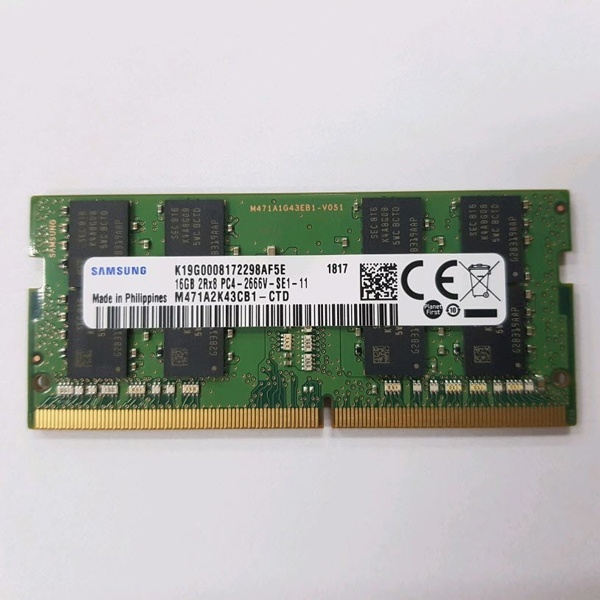

ㅇ DDR4 16G PC4-21300 노트북용 메모리: 삼성 DDR4 16GB PC4-21300 노트북용 저전력
https://www.reddit.com/r/synology/comments/km1vzb/ds1821_andor_ds1621_ecc_ram_upgrade_options/
DS1821+ and/or DS1621+ ECC Ram Upgrade Options
Seems to be a lot of input on this so I'd like to keep a master list of ram options that WON'T trigger error messages. I'm gonna start my...
www.reddit.com
ㅇ 진단 테스트
ssh, root 계정
$ cat /var/log/messages | grep 'Memtest'
$ findhostd[11410]: util_fhost.c:1207 Memtest passed!
$ findhostd: util_fhost.c:1358 Memtest p
-> 메세지확인,
2021-11-19T23:02:10+09:00 cubem findhostd[14454]: util_fhost.c:1205 Memtest failed! err=1
램 정보 확인
$ sudo dmidecode --type 17 | more
sudo dmidecode --type 17 | more
# dmidecode 3.2
Getting SMBIOS data from sysfs.
SMBIOS 3.1.1 present.
Handle 0x001F, DMI type 17, 40 bytes
Memory Device
Array Handle: 0x001E
Error Information Handle: 0x0022
Total Width: 64 bits
Data Width: 64 bits
Size: 16384 MB
Form Factor: SODIMM
Set: None
Locator: DIMM 0
Bank Locator: P0 CHANNEL A
Type: DDR4
Type Detail: Synchronous Unbuffered (Unregistered)
Speed: 2667 MT/s
Manufacturer: Samsung
Serial Number: 41391669
Asset Tag: Not Specified
Part Number: M471A2K43CB1-CTD
Rank: 2
Configured Memory Speed: 2400 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
